Machine Quick Details
Model Application:Top Hat	Condition: New
Type: Roll Forming Machine	Brand Name: Frametec
Applicable Materials: PPGI	Forming Speed: 20-25m/min
Warranty: 1 year	Place of Origin: China





Features of the machine:

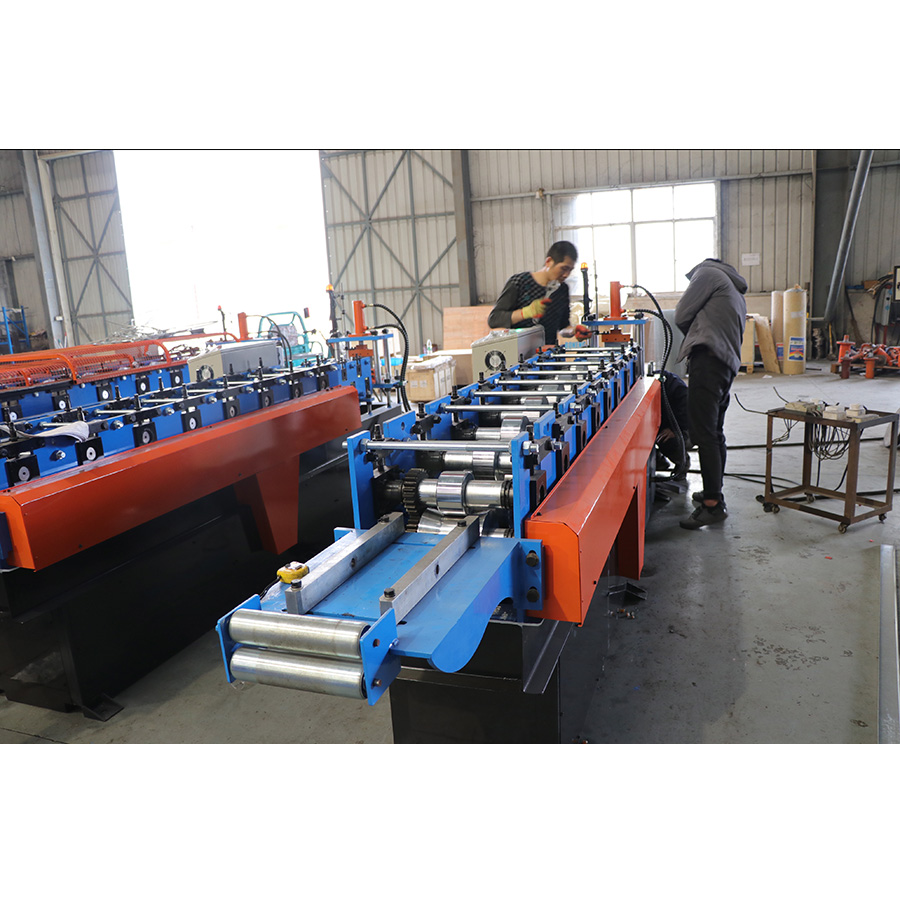

Our top hat roll forming machine consists of decoiler, feeding and levelling device, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system).

Long production line, good profile shape on final products; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.

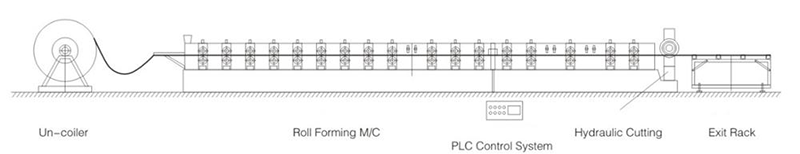

Flow chart: Decoiler---manual-pre-cut--feeding & guiding---rorming----hydraulic cutting—out table

PROFILE





MATERIAL:

1)Material : Galvanized sheet, cold rolled sheet

2)Width: 30-80mm, flange: 40-150mm, lips: 15-50mm

3)Yield strength 245-550MPA

4) Suitable Coil Thickness: 0.7-2.0mme





Main Components:

1) De-coiler with coil car and coiler feeder

　De-coiler: Hydraulic de-coiler with snub arm

　Control type: Electric button control

　Function: Auto rotation feed sheets into next station

　Weight of de-coiler: around 1 Ton

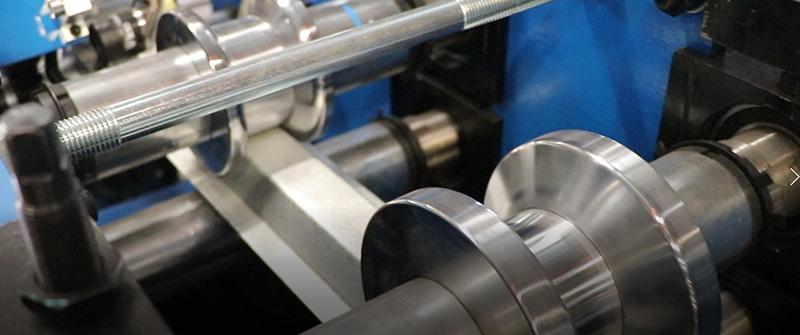

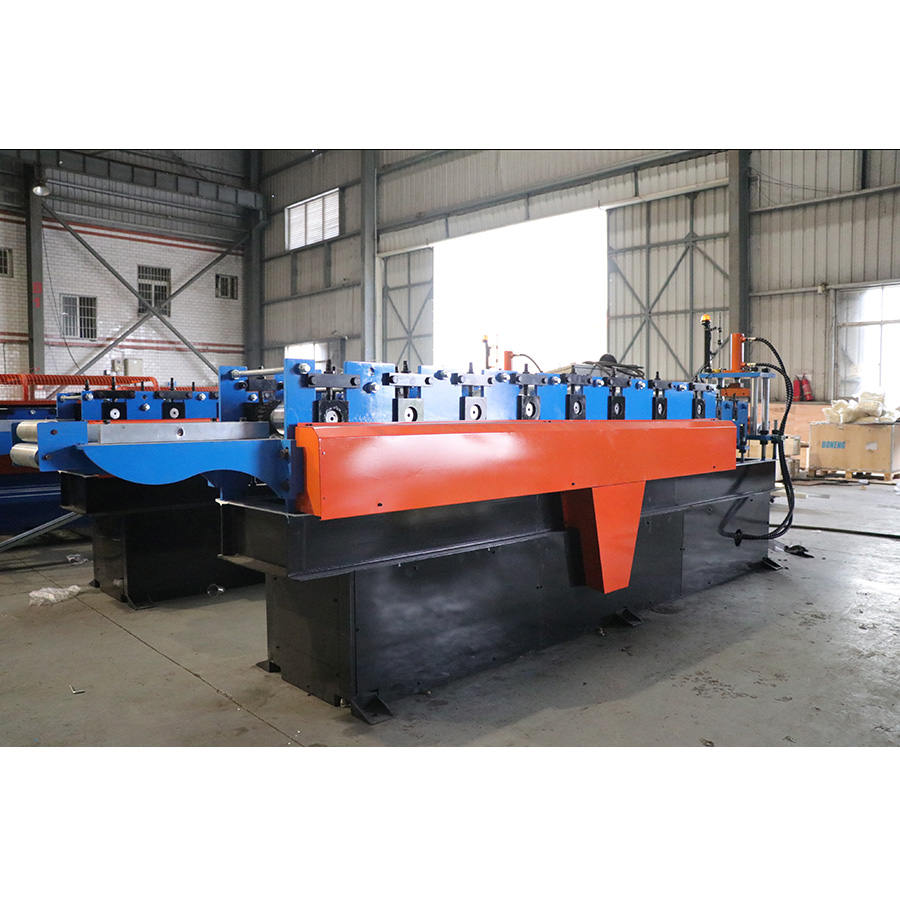

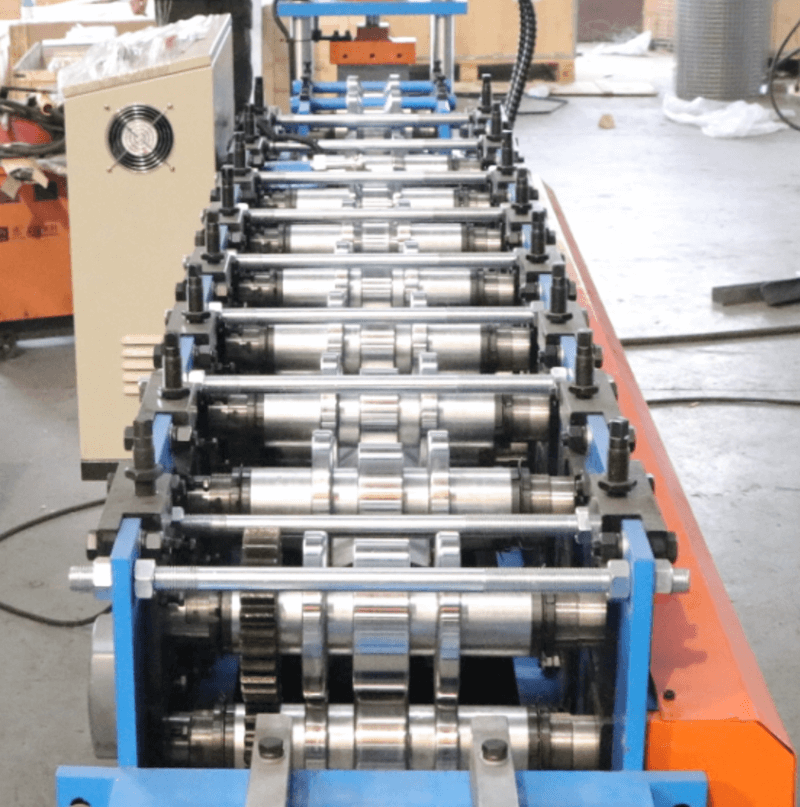

2.Roll-Forming M/C:

1)The main frame of machine is welded separately and the outside wall is connected by screw after being roto blasted on the surface.

2) Roller Material is high grade No.45 forged steel, with digital-controlled procession.

3)Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

4)The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensures long life of forming rollers.

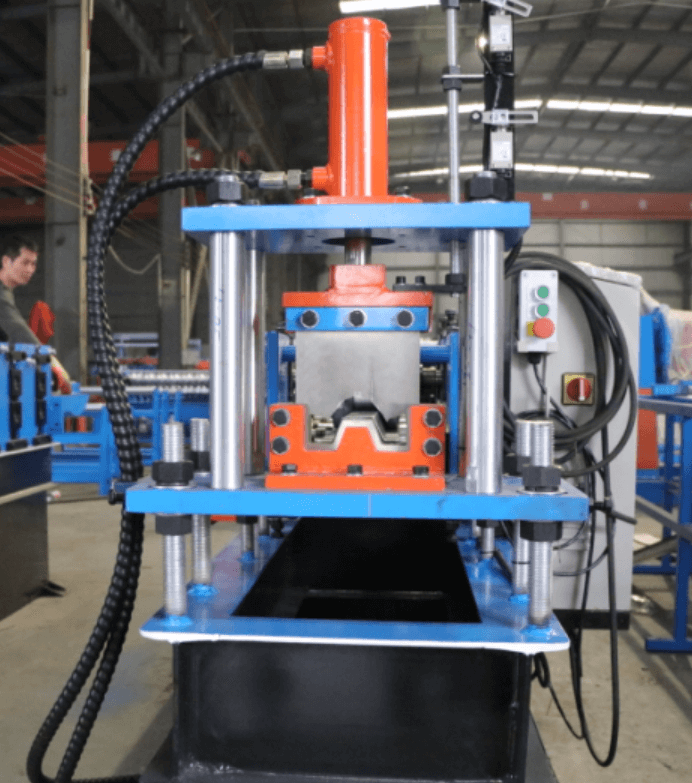

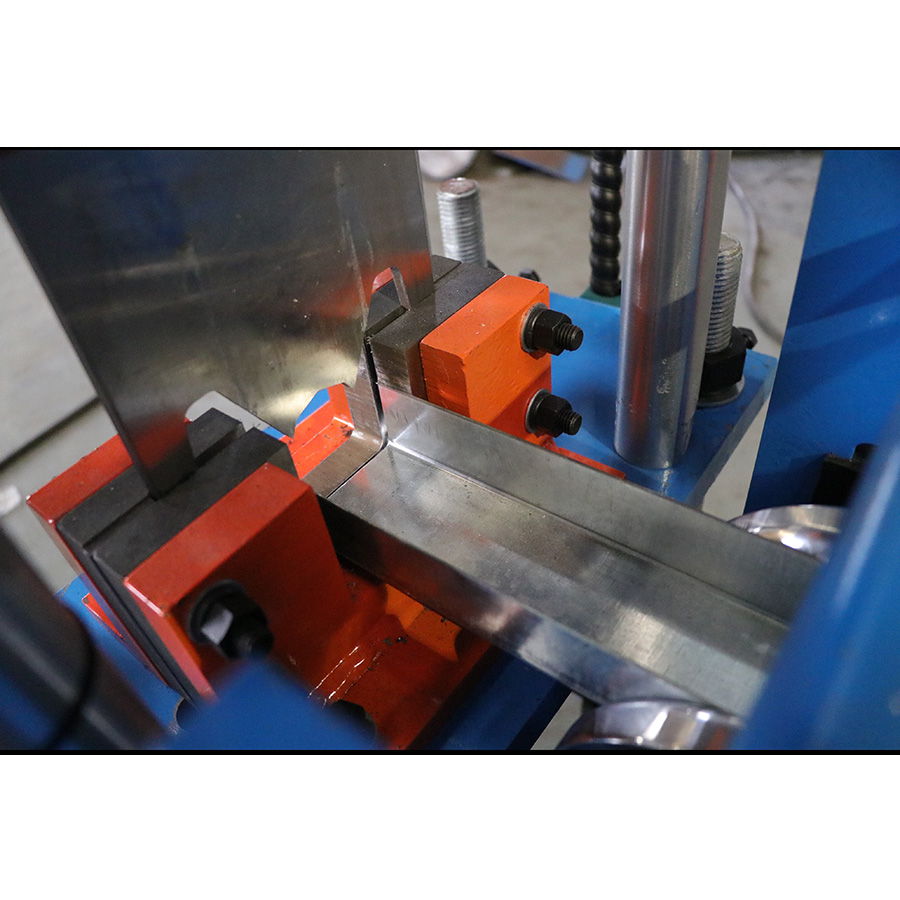

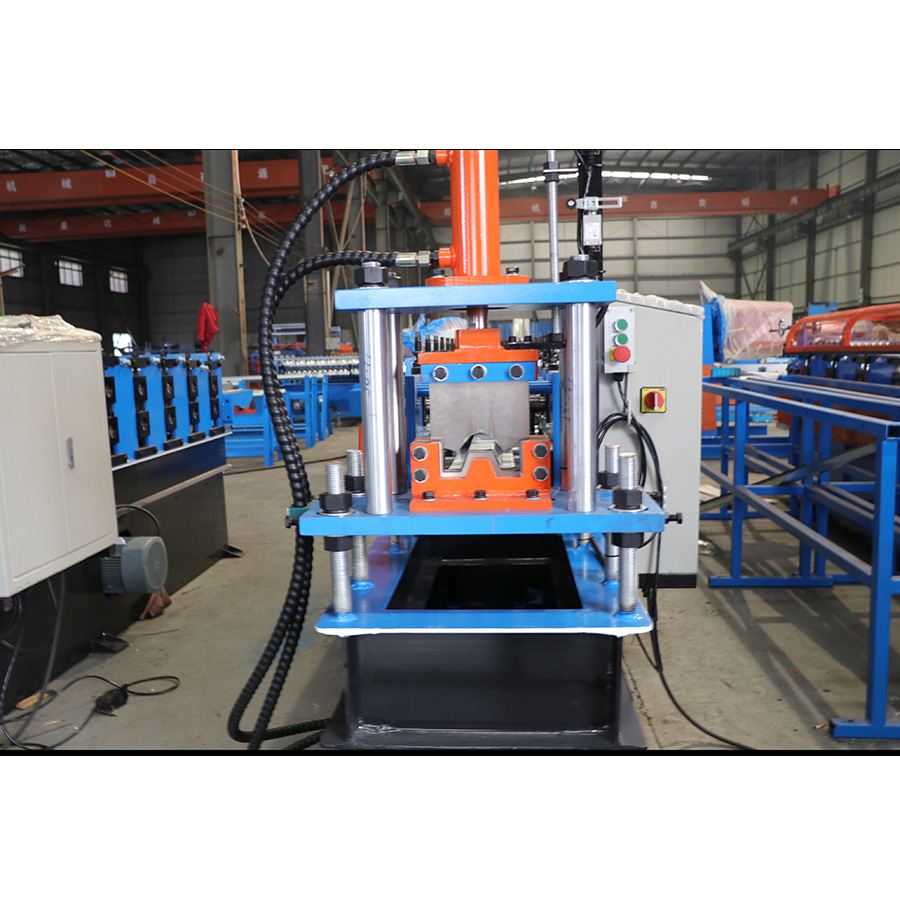

3.Hydraulic Post Cutting

1)  Adopts post cutting, Stop when cutting;

2)  The cutting blade material is Cr12 with quenched treatment.

2)  Adopts welded frame for good rigidity.

4)  Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm;

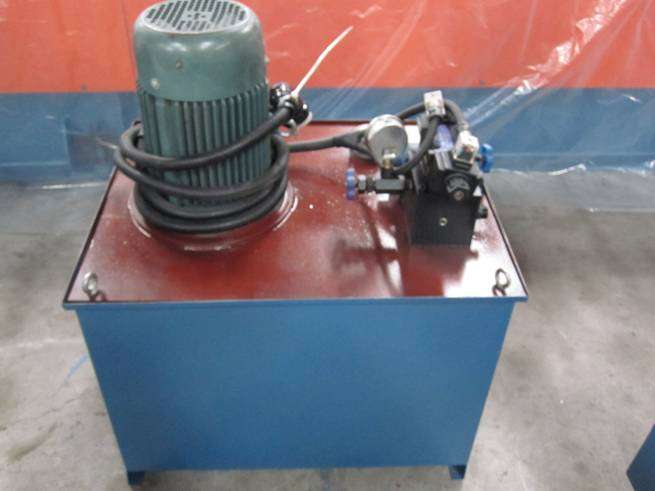

4.Hydraulic station:

1)  It supplies the power for the hydraulic cutter.

2)  All hydraulic accessories are all use Chinese or importing famous brand products.

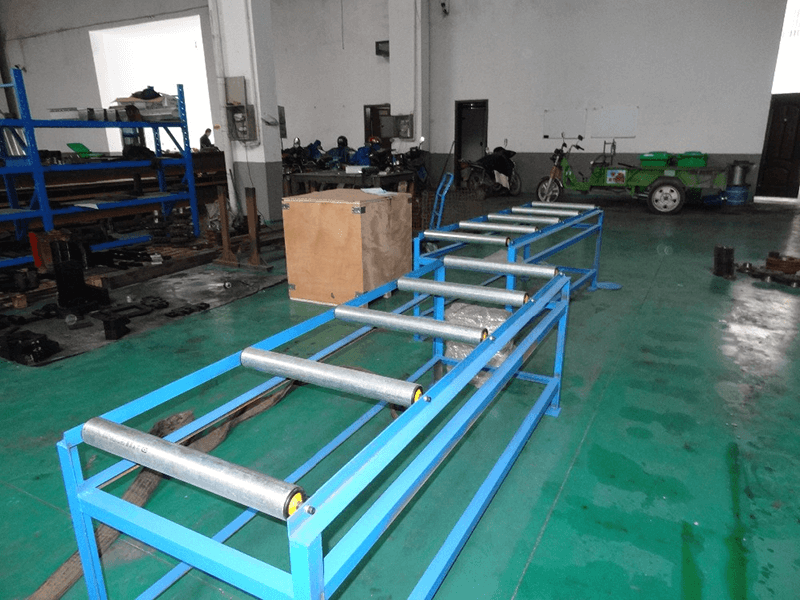

5.Profile Stack

Un-power, total 3 units, with roller on top stack for easy movement

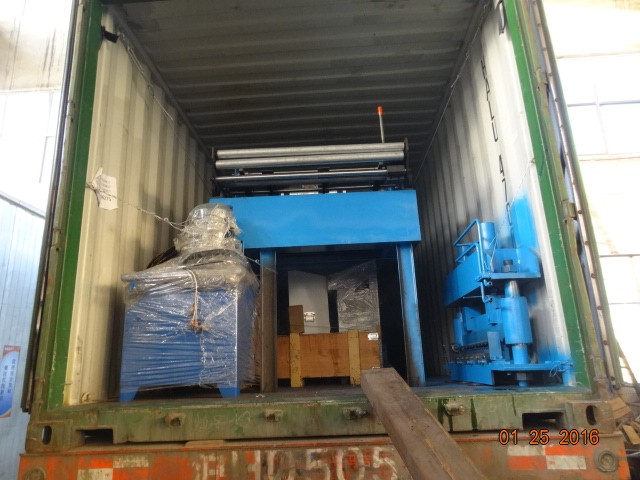

Machine Packing

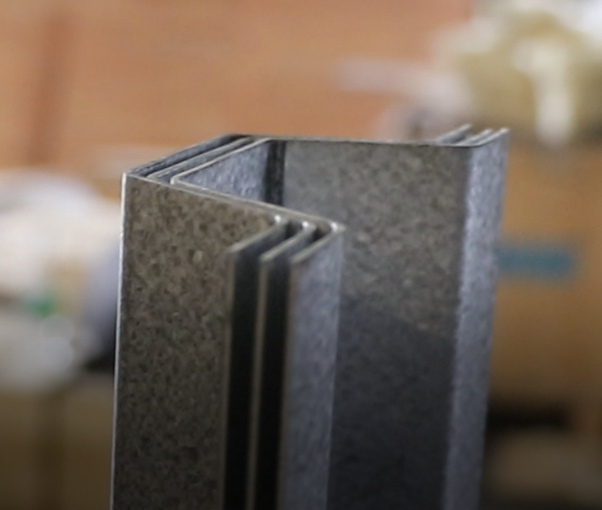

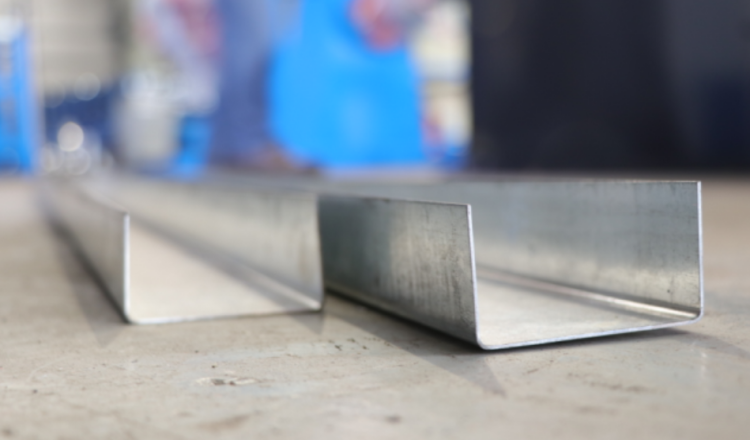

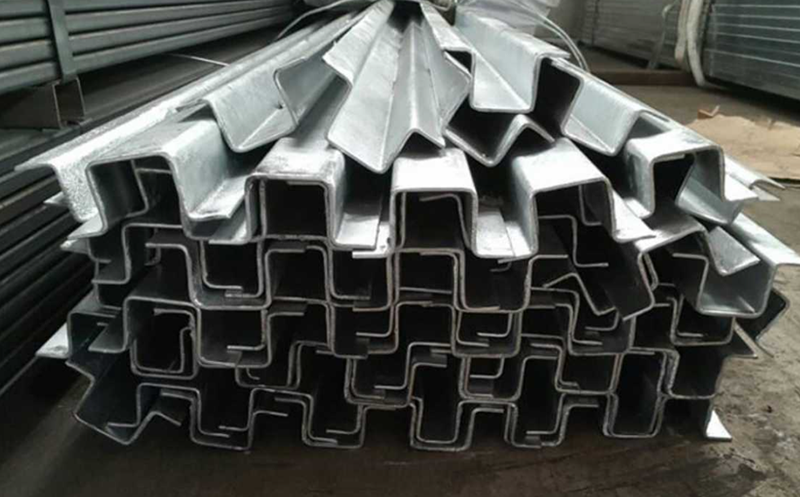

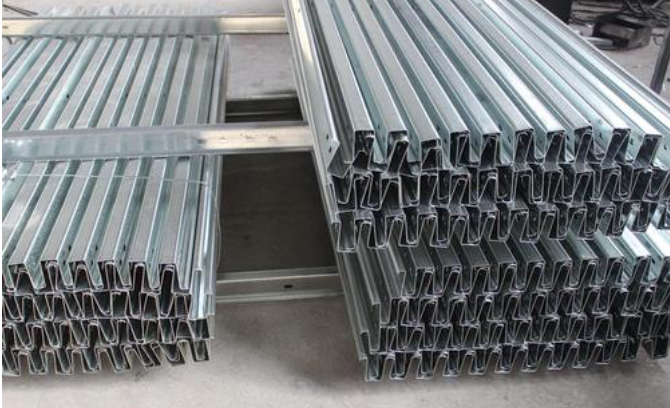

Profile effects:











Customer Inspection

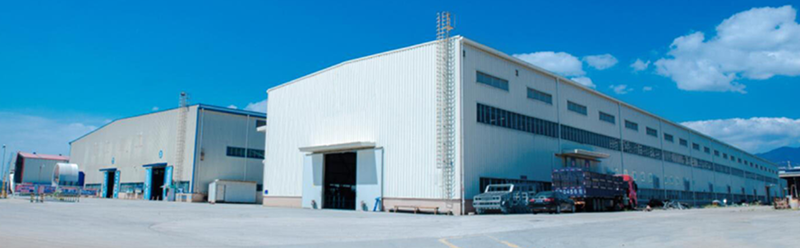

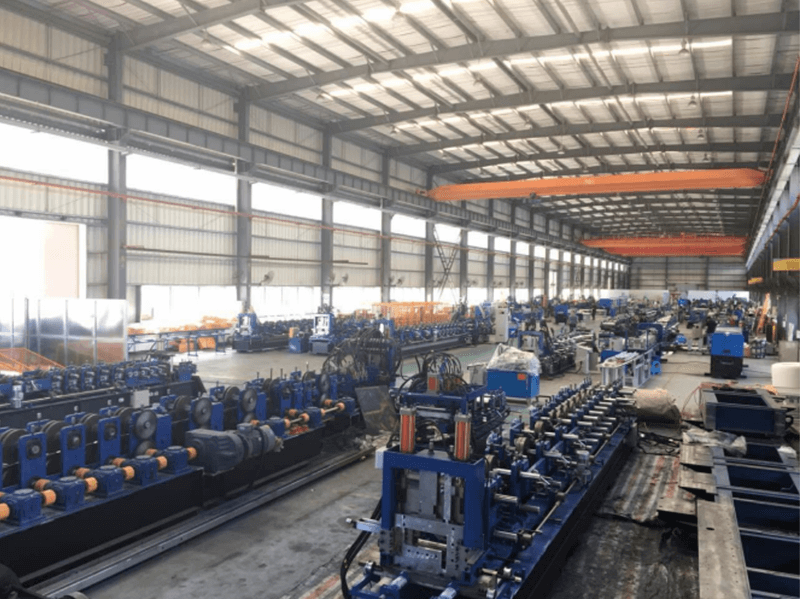

Our Factory









Why Choose us：

13 years’ manufacturing experience in high quality equipment for cold formed steel structures.

Competitive price and good quality

One year free warranty

Fast response of after sale service

Can be customized by clients’ requirements

Easy operate and easy to maintain

Self-developed of post cutter, one blade to cutter all size of final products
