| Machine Quick Details | |
| Model Application: floor deck | Condition: New |
| Type: Roll Forming Machine | Brand Name: Frametec |
| Applicable Materials: PPGI | Forming Speed: 20-25m/min |
| Warranty: 1 year | Place of Origin: China |
Features of the machine:

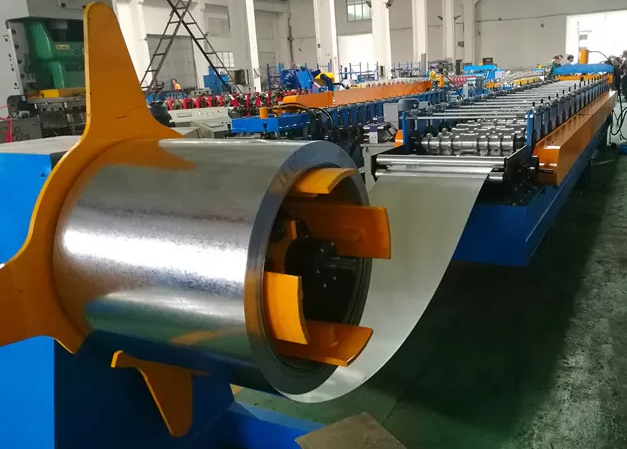

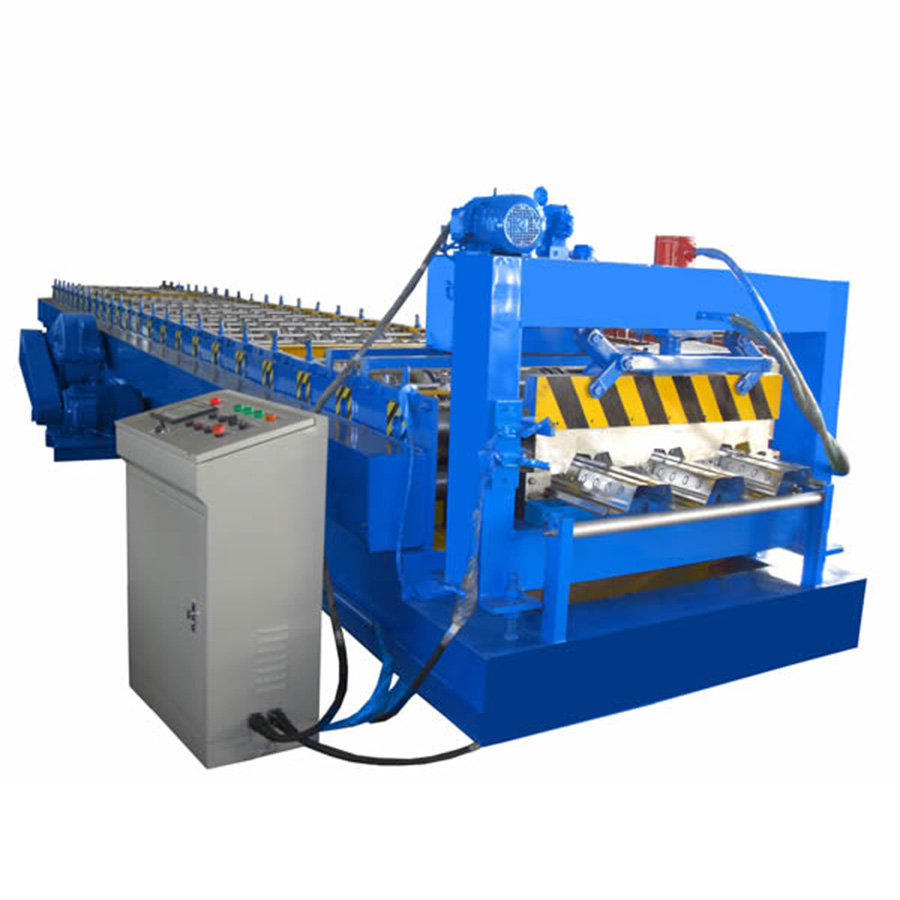

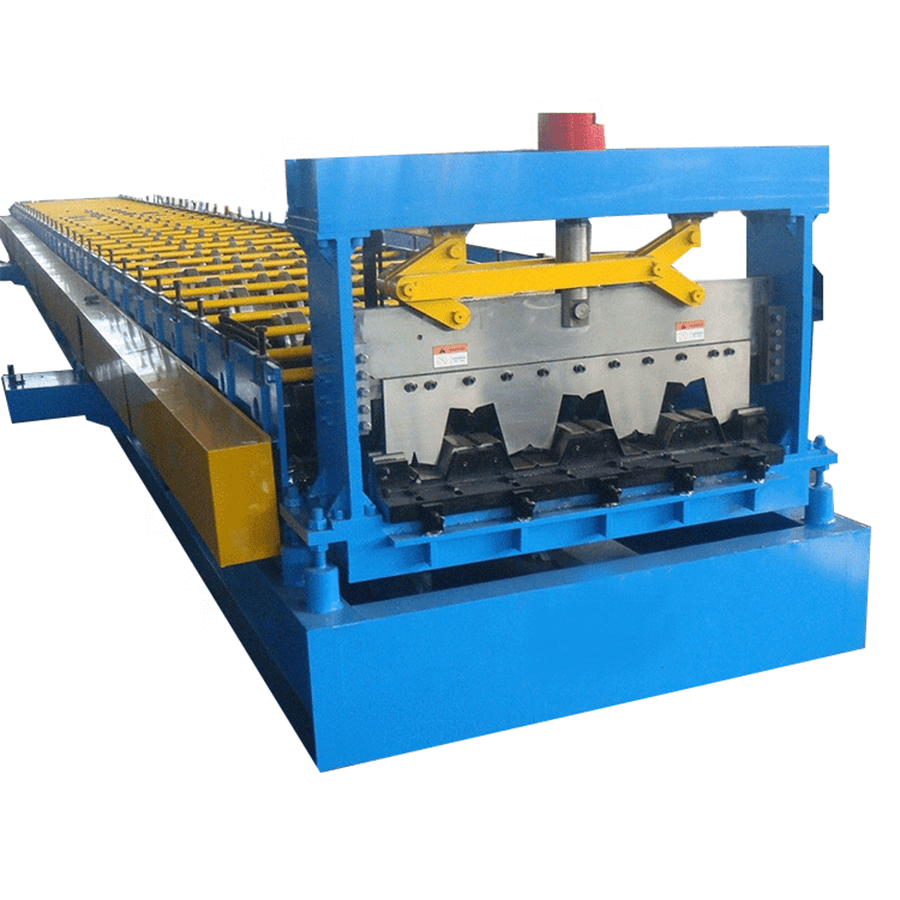

Our YX50-180-900 floor deck roll forming machine consists of decoiler, feeding and levelling device, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system).
Long production line, good profile shape on final products; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.
Flow chart: De-coiler – Leveling device -- roll forming parts -Post Cutting system– Stack

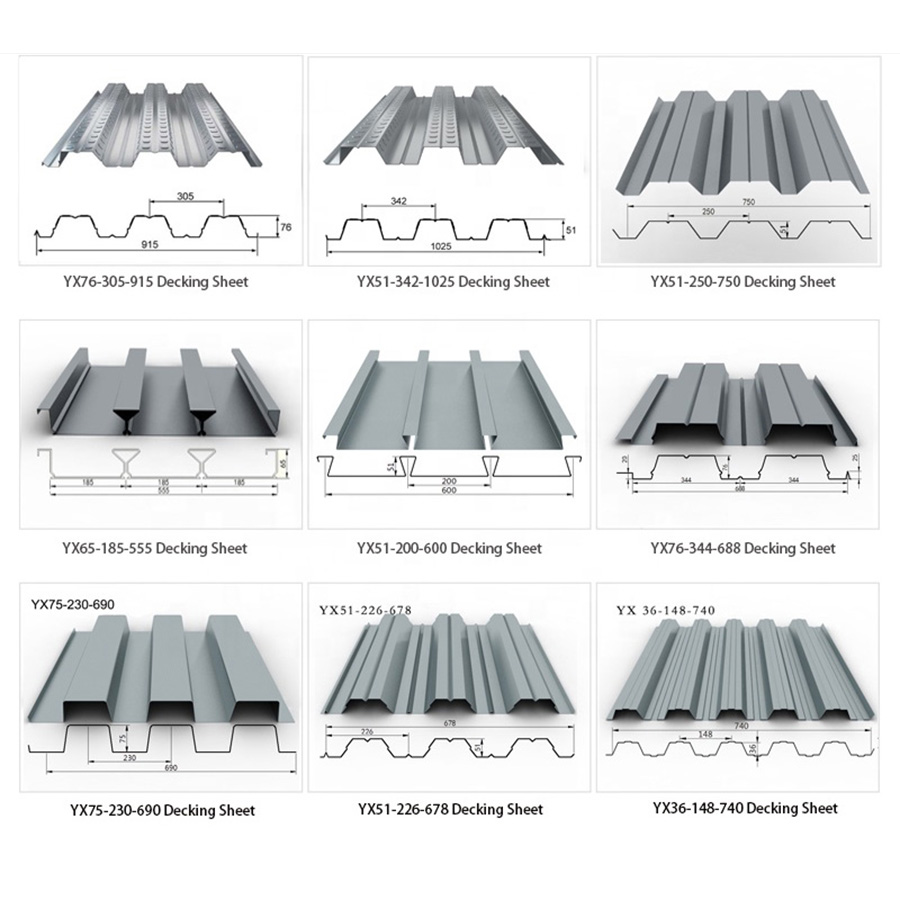

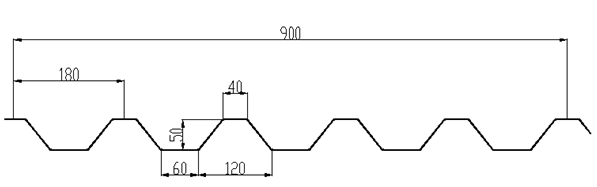

PROFILE
MATERIAL:
1 ) Coil Width: 1200mm
2 ) Suitable Coil Thickness: 0.5-1.2mm
3 ) Suitable Raw Materials: color steel sheet, galvanized steel sheet
4) Yield strength of raw material: 345Mpa
Main Components:

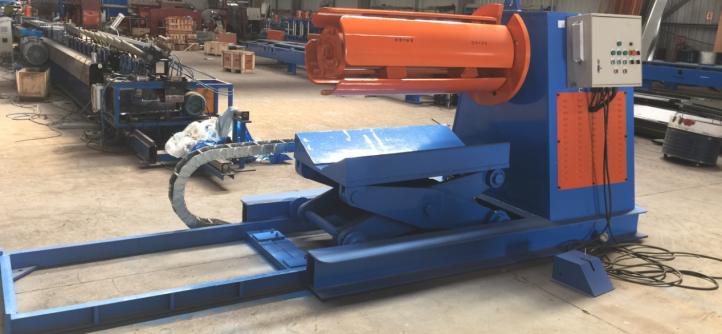

1. Hydraulic decoiler with coiler car
a.De-coiler: Hydraulic de-coiler
b.Control type: Electric button control
c.Function: Auto rotation feed sheets into next station
d.Weight of de-coiler: 1 Ton
e.Motor Power: 3Kw, 380V, 50Hz ( can be customized)

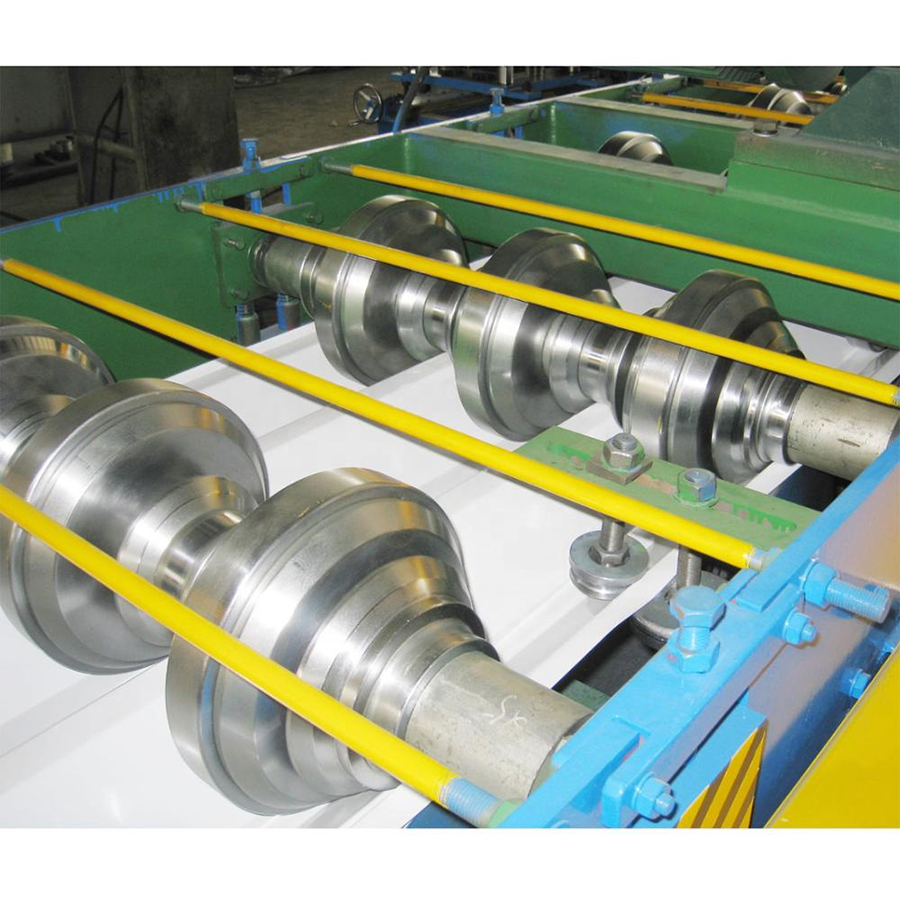

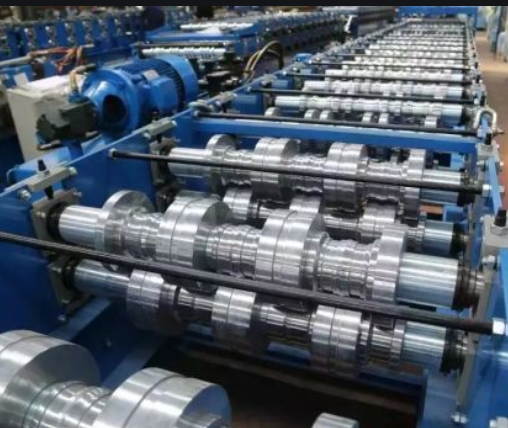

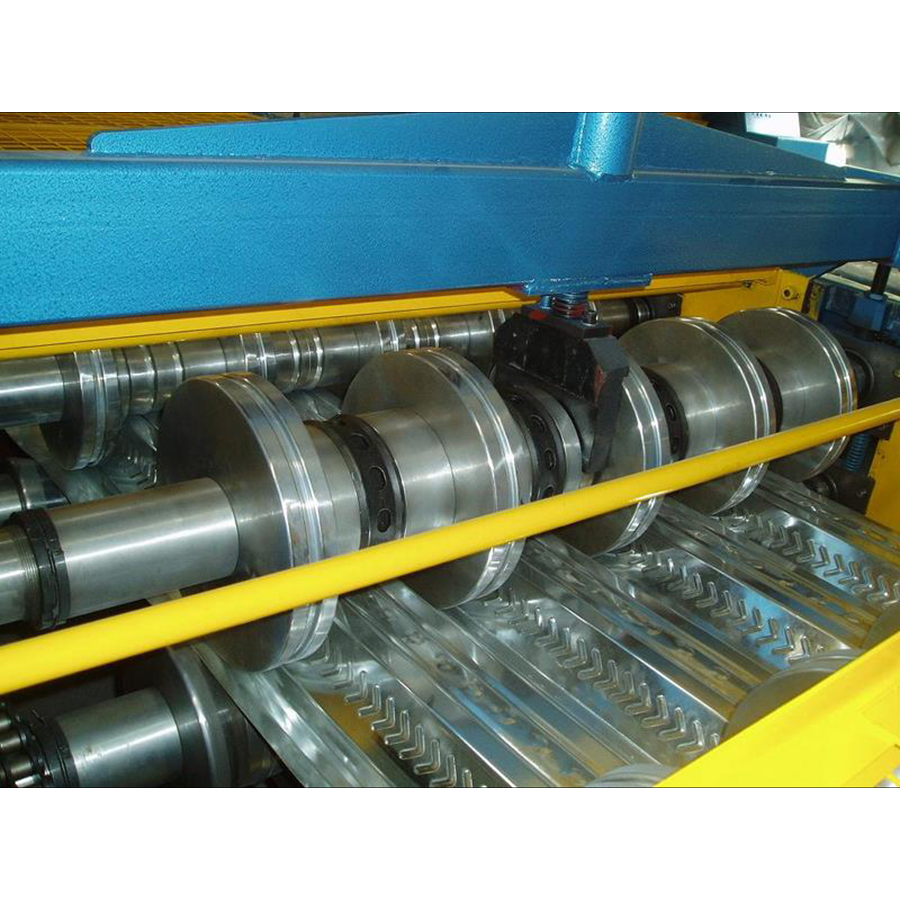

2.Roll-Forming M/C:
1) The main frame of machine is welded separately and the outside wall is connected by screw after being rot blasted on the surface.
2) Roller Material is high grade No.45 forged steel, with digital-controlled procession.
3) Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
4) The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensures long life of forming rollers.

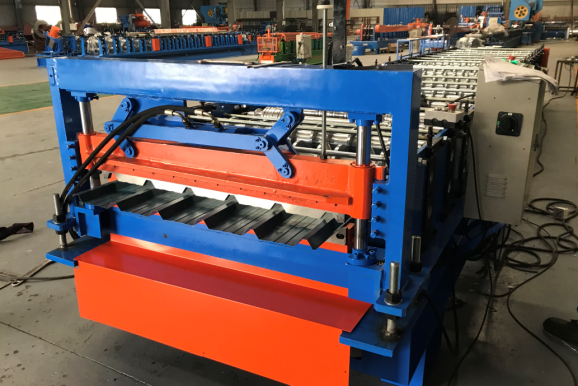

3.Hydraulic Post Cutting
1) Adopts post cutting, Stop when cutting;
2) The cutting blade material is Cr12 with quenched treatment.
3) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm;
4. Hydraulic station:
1) It supplies the power for the hydraulic cutter.
2) All hydraulic accessories are all use Chinese or importing famous brand products.
3) Hydraulic station, oil pump power 5.5 KW
4) Follow servo motor power 5.0KW, Inovance brand; linear guide, ball screw drive.
5. Profile Stack
Un-power, total 3 units, with roller on top stack for easy movement

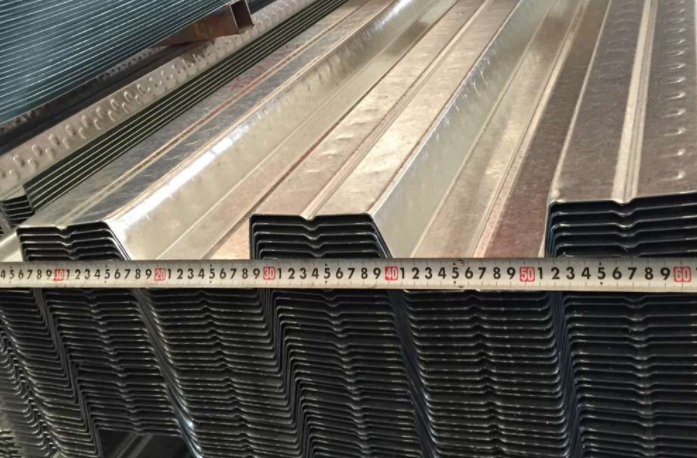

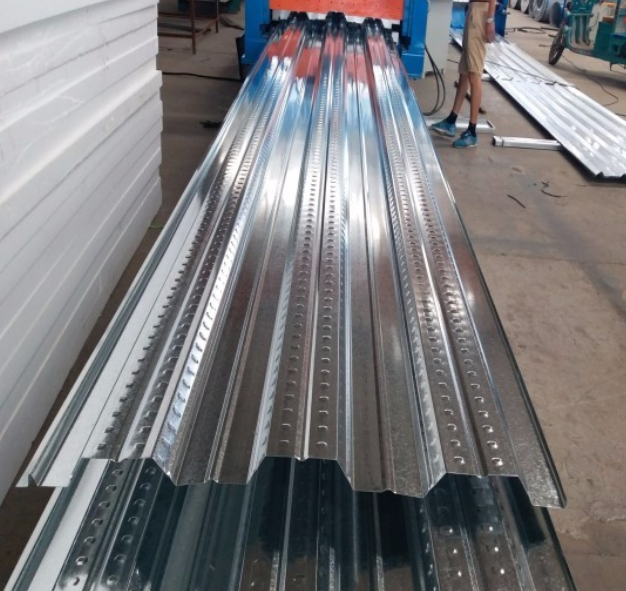

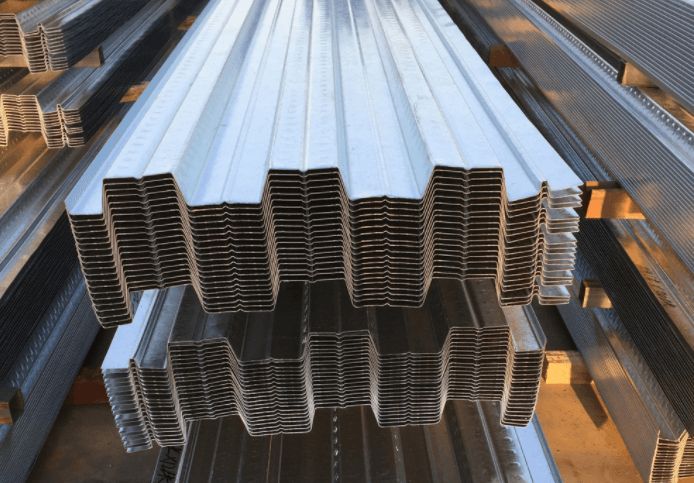

Profile effects:
Customer Inspection

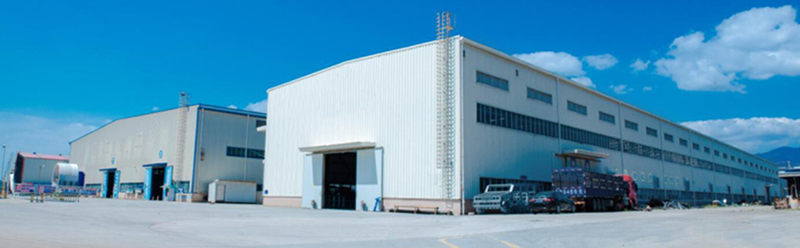

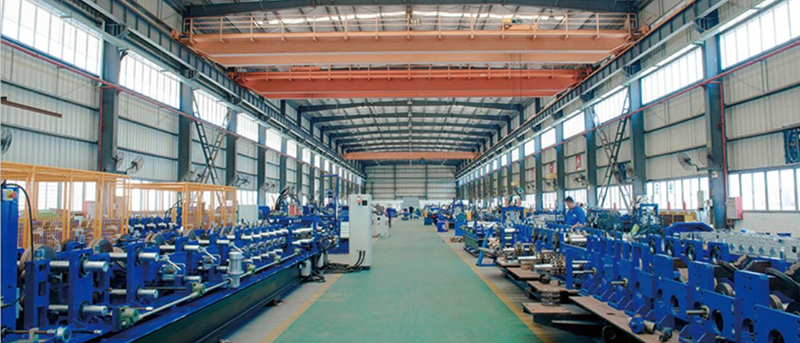

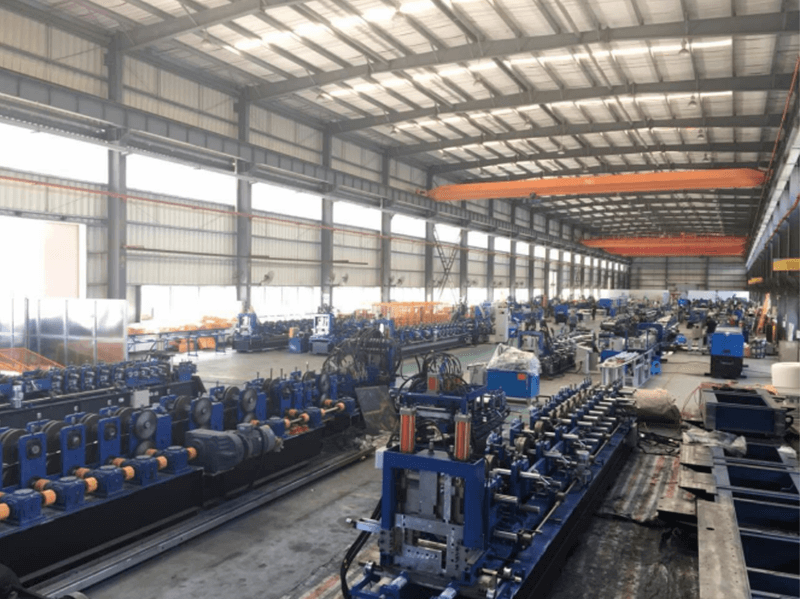

Our Factory
Why Choose us：
13 years’ manufacturing experience in high quality equipment for cold formed steel structures.
Competitive price and good quality
One year free warranty
Fast response of after sale service
Can be customized by clients’ requirements
Easy operate and easy to maintain
Self-developed of post cutter, one blade to cutter all size of final products
