Items

Features

Details

1

Lightweight

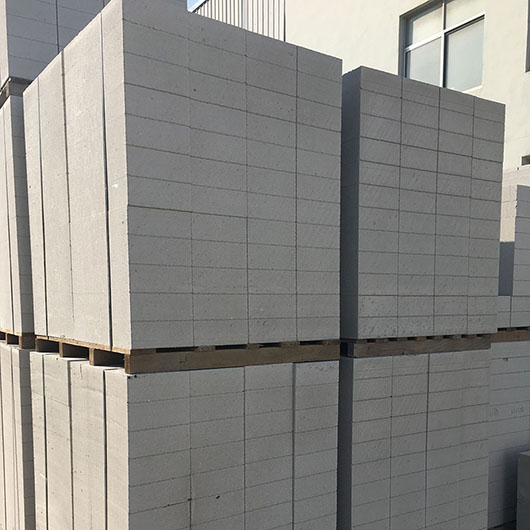

Autoclaved Aerated Concrete panels/blocks are one-fifth of the weight of concrete and are produced in easily handled sizes. (Dry density grade is 525KG/m3)

2

Economy

Using AAC panels can shorten the construction period in half because of its lightweight and easy workability.In most cases the need for supplementary insulation can be avoided.

3

Energy-saving
(Thermal conductivity is 0.11)

Thermal conductivity of Autoclaved Aerated Concrete panels is one-tenth of that of concrete, that means insulated features are 10 times than concrete. Thermal insulation for AAC panels of thickness 100mm is equal to clay tile wall of 300mm. Therefore, AAC panels are building materials with excellent features of thermal insulation.

4

Sound insulation

Sound insulation for Autoclaved Aerated Concrete panels of 100mm is 40.8db, while 150mm is 45.6db. There are a lot of separate crystal-shaped blowholes in the panel, so the panel has the features of sound insulation and acoustic absorption.

5

Fireproofing
(4 hours)

The fire-resistant time for AAC panels of 100mm is 3.42hours while 120mm is 4 hours. The original materials of AAC panels is totally inorganic and is incombustible, and will not volatilize noxious gas even under the high temperature. The product is especially suited for fire-rated applications.

6

Load bearing

The intensity of pressure for cube is more than 4mpa. The load bearing capacity for one point is more than 1200N. The rebars within AAC panels are made according to computer calculating force. As a non-loadbearing cladding, AAC panels can be used under circumstances of pressure.

7

Anti-vibration

As a building envelope, AAC panels are known for their excellent anti-vibration by architects. In a simulated earthquake experiment (seismic intensity 10.5), none of the panels fracture, and joints of test construction are undamaged.

8

Environmental protection

The Autoclaved Aerated Concrete is designed for consumers who are environmentally conscious. It helps reduce at least 30% of environmental waste, decrease over 50% of greenhouse radiation and over 60% integrated energy on the surface of brick.
