Installation instructions

Corner connect parts, more used for wall internal corner of connection with thin flat or round head washer drlling screw, screw full used, use 3 or more corner connect parts for each wall internal corner. installed in the wall internal corner, can be used with the outside wall sunny corner ZB121 connect parts mutual intelligibility. When used in the other position, the bolt in shear strength condition is preferred.

Introduction

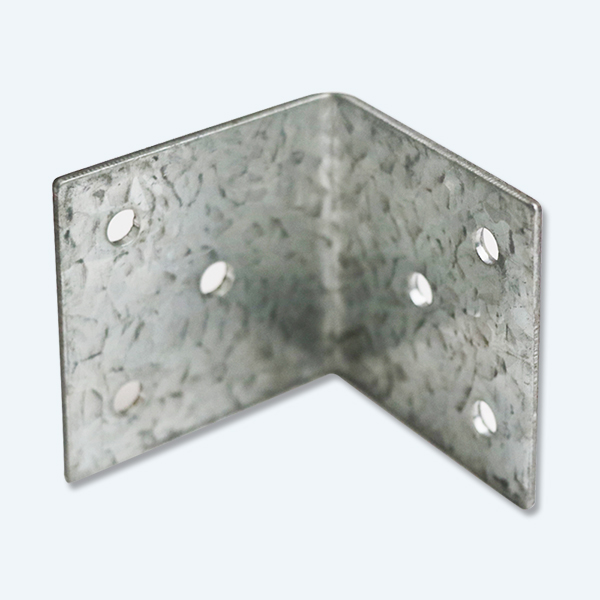

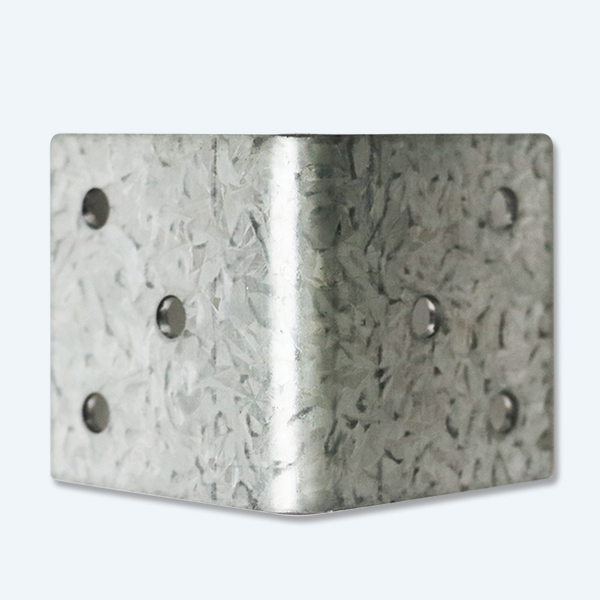

Corner connect parts, thickness is 2.0 mm, pre-punching in the 2 sides with 3 pcs holes, add a reinforce in the bottom, round corners treated, safe and smooth.

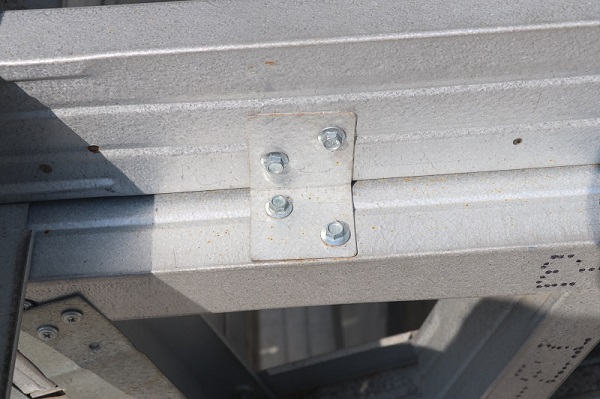

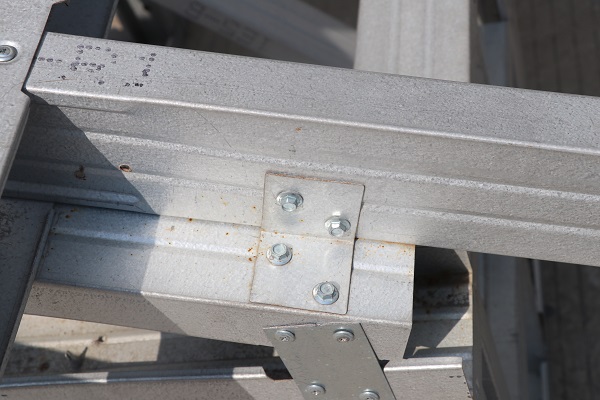

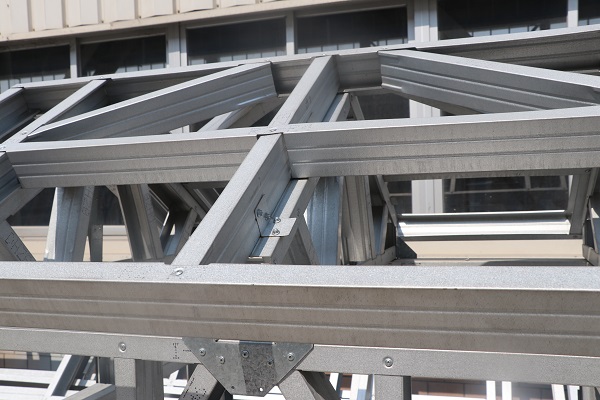

Installation Diagram -Internal corner of connect -Roof plate connect
